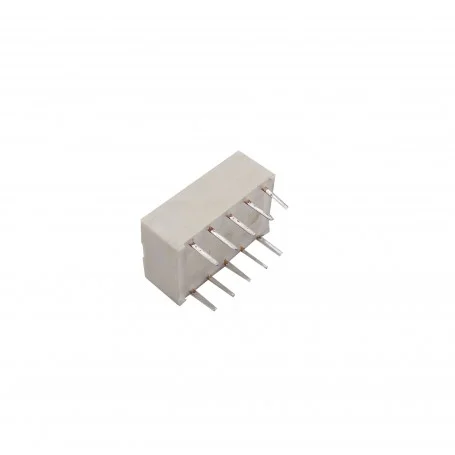

رله 9V مینیاتوری 10 پایه ژاپنی مارک TAKAMISAWA کد A9W-K

Contact Material: Gold, Silver
Mount: Through Hole
Number of Pins: 10
Weight: 1.2 g
Coil Current:15.54 mA
Coil Resistance: 579 Ω
Coil Type: Non-Latching
Coil Voltage (DC): 9 V
Contact Current Rating: 2 A
Max Current Rating: 2 A
Max Operating Temperature :85 °C
Max Voltage Rating (AC): 125 V
Max Voltage Rating (DC):110 V
Min Operating Temperature: -40 °C
Operate Time: 6 ms
Power Consumption: 140 mW
Termination: Solder
Throw Configuration: DPDT
Voltage Rating (AC): 125 V
Voltage Rating (DC):110 V
Depth: 9 mm
Length:14 mm
