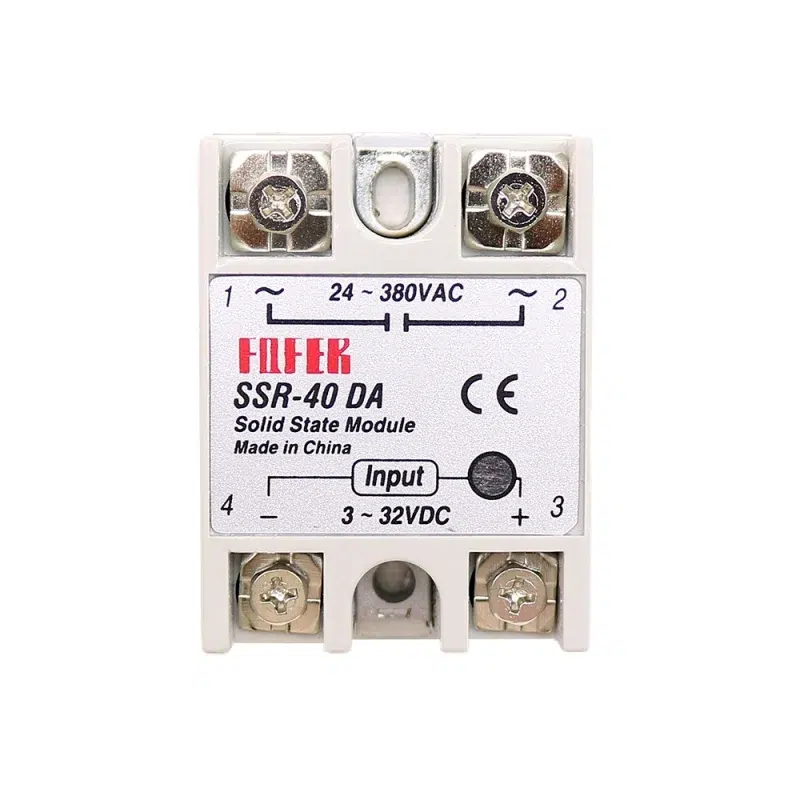

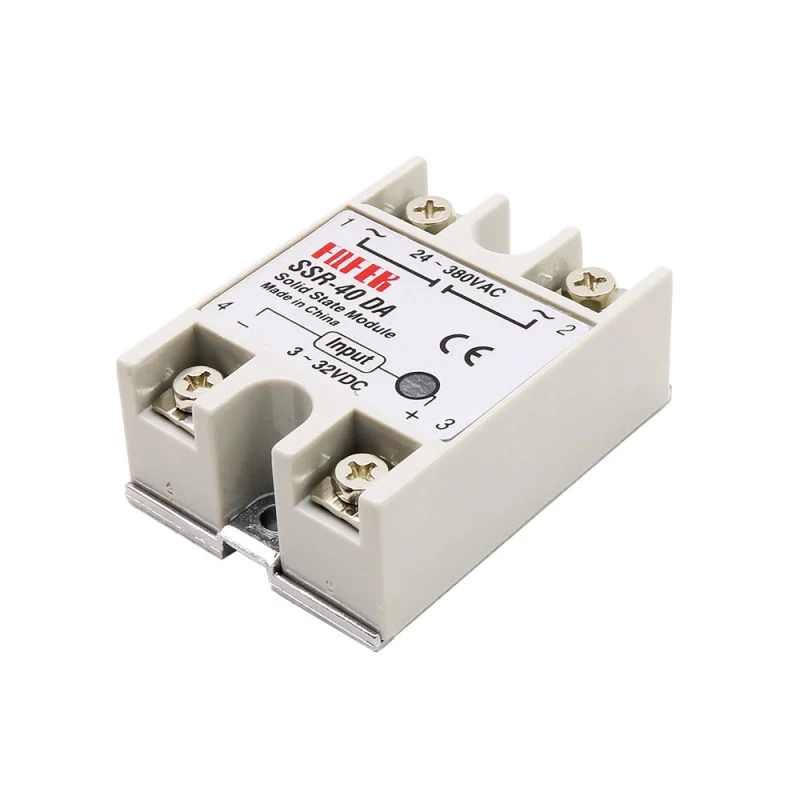

رله حالت جامد SSR-40 DA

This is SSR-40DA Single-phase Solid-State Relay. It can be driver by Arduino directly without any expanding circuit because of its built-in opto-couple. The plastic protective cover makes it be a safer relay module. SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation and screw terminal connection. This series solid state relay has high structural strength, impact resistance and strong resistance to versatility. The low input drive current makes it convenient to connect with computer terminal and various digital programmable interface circuit. It is widely used in automation control field such as petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine, plastic machinery, fitness equipment, recreational facilities, especially suitable for severe environments like corrosion, moisture, dust prevention, explosive requirements and frequent switch occasions. SSR series solid state relay are update replacement products of a.c. contactor.
Reliable SMT technology
High ultra-insulation resistance over 50MΩ/500V DC
High dielectric over 2.5KV
Low enable current less than 7.5mA/12V DC, compatible with CMOS IC or TTL
Low EMI/EFI & surge by zero cross trigger method
High surge current over 410A/one cycle (60Hz)
High surge voltage duration by snubber circuit
